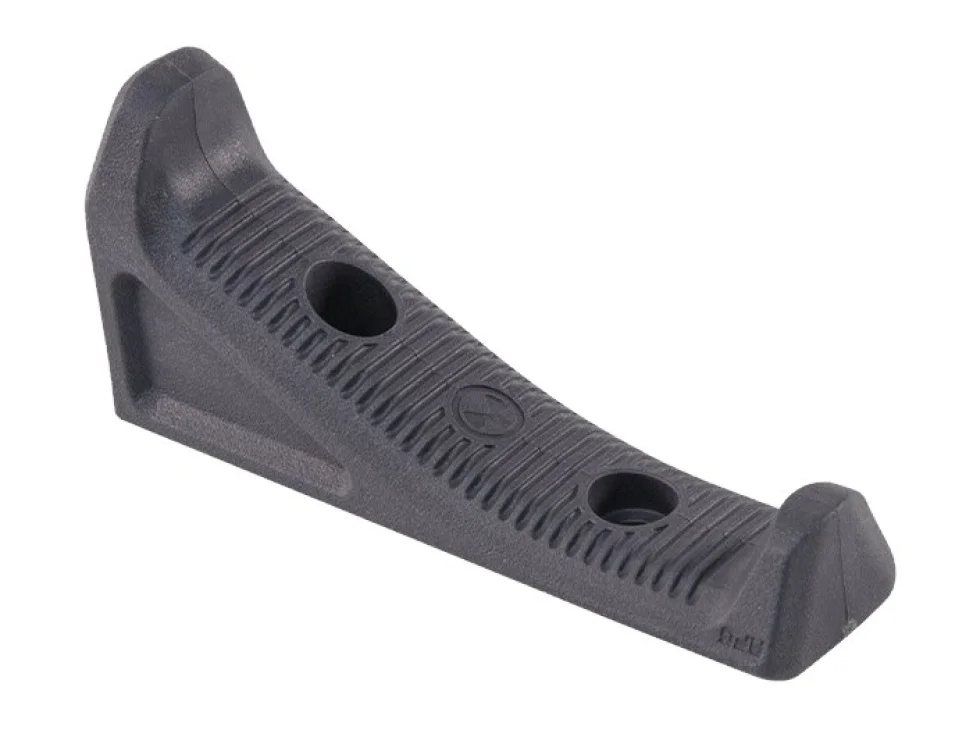

Magpul M-LOK AFG Angled Fore Grip

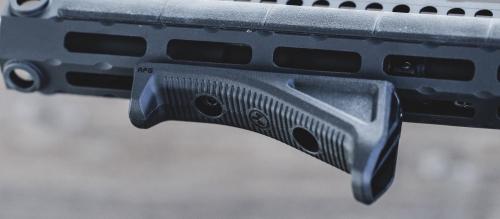

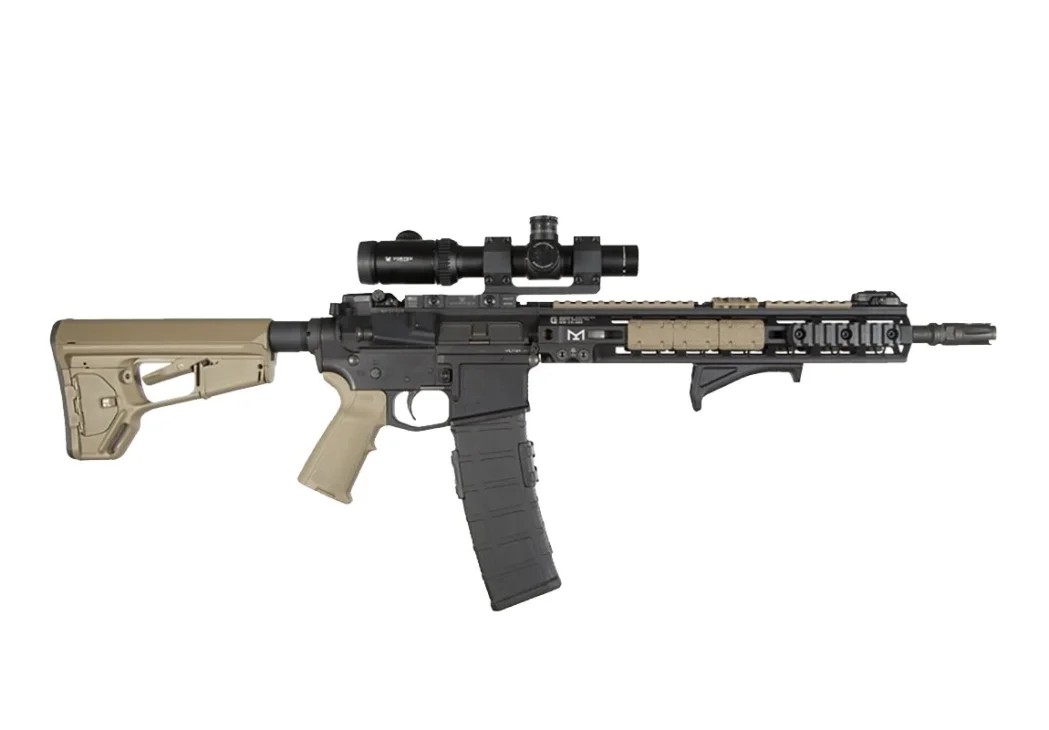

The Magpul M-LOK AFG is a slim piece of angled grip zone for your rifle or carbine. By positioning the shooter's hand close to the centerline of the bore, the M-LOK AFG helps mitigate recoil and control the weapon to facilitate faster, more accurate follow-up shots compared to ordinary vertical grips.

Compared to older rail-mounted AFGs, the M-LOK AFG has been reduced in size and weight quite a bit. Without reducing the usable gripping area, the total length is cut to 100 mm and the weight is just 34 g (including mounting hardware). These mean a reduction of 17% from the length and over 50% from the weight.

In case you were looking for a rail-mounted solution, click here for the AFG-2.

Can you fit this to anything else?

To mount this on legacy MOE slots, the easy and reversible way is to use the M-LOK to MOE adapter kit.

If you have a clean slate (a reasonably flat section that matches the length of the grip), chances are you can make this work.

You'll need four 7 x 12 mm rectangular holes for the recoil mitigation lugs and M-LOK T-nuts, or just two if you make them 7 x 32 mm. The material thickness must be at least 2 mm for the nuts to grab before bottoming out.

The center-spacing of the holes is 20 mm if you make four of them.

If these measurements boggle your mind, it might be easier to just buy a metric caliper instead of converting these. For example, 7 mm is more than 1/4" but less than 9/32". It's a headache.

This should help you get started. If you're confused, choose something else to do while you drink beer. These aren't jobs for amateurs.

Materials and specs

Molded of the same high-quality material as other Magpul polymer accessories,

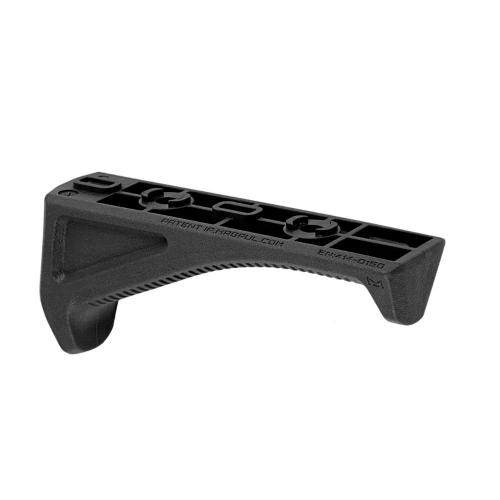

All hardware necessary for attachment directly to M-LOK slots on compatible aluminum or polymer hand guards and forends in included: Two screws and two T-nuts. You will need a 1/8" hex key to tighten the screws.

Overall length: 100 mm / 3.95".

Weight: 34 g / 1.2 oz

Made in the USA.
