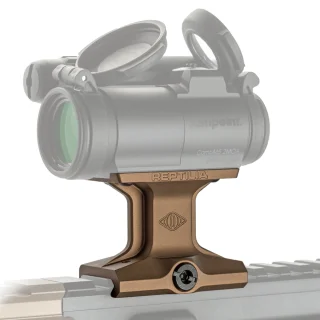

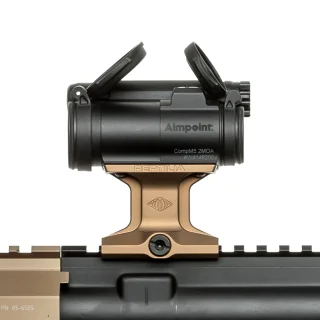

Reptilia DOT Mount, Aimpoint Micro

Here is a very simple and sturdy mount for your red dot sight! This Reptilia DOT Mount is compatible with Aimpoint Micros and other optics that use the same footprint – check the list for examples.

• Very light
• Sturdy construction
• 1.93" sight height

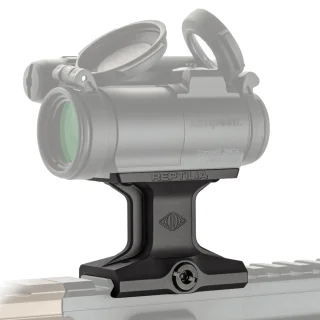

This mount is compatible with Aimpoint Micros and other optics with the same footprint. The sight height is 49 mm / 1.93" from the top of the rail, which makes this suitable for operating a rifle while wearing a gas mask and/or NVGs. It comes in two colors: black and FDE.

Features

The Reptilia DOT Mount attaches to the Picatinny rail with a spring-loaded steel clamp. You can tighten the screw with either a T25 Torx tool or a flat blade screwdriver (we recommend a Torx tool) – remember to press the mount downward and forward while tightening to keep it firmly in place despite recoil. The mount is machined from a single piece of 7075-T6 aluminum and finished with MIL-STD Type III Class 2 hard anodized coating.

• Sight height 49 mm / 1.93"
• Machined from 7075-T6 aluminum
• MIL-STD Type III Class 2 hardcoat anodized
• Weighs 55 g / 1.94 oz.
• Made in the USA

Like all Reptilia products, the DOT Mount is made in the USA and comes with a lifetime warranty against defects in workmanship or material.

Compatibility

This DOT mount is compatible with the following optics:

• Aimpoint: Micro R-1, H-1, H-2, T-1, T-2, CompM5
• Sig Sauer: ROMEO4 , ROMEO5, ROMEO-MSR
• Vortex: Crossfire, Spitfire, Sparc I & II
• Primary Arms: Classic Series Gen II, SLx Advanced Rotary Knob Microdot, SLx Compact 1×20 Prism Scope (ACSS Cyclops)
• Holosun: HS403 (not HS403A), HE403, HS503, HE503, HS515, HE515, HE530

Included in the Package

• DOT mount
• 4 hex screws for mounting the red dot sight
• 2mm hex key

Recommended Torque Specs

What's torque, you ask? In firearm installations, it's advisable to follow the torque values provided by the manufacturers – that is, how tight the screws should be fastened. So, get yourself a torque wrench with a range of about 0-70 in-lbs / 0-8 Nm! Tighten the DOT mounting clamp screw to 45 in-lbs / 5.1 Nm.

Note: Your red dot sight attaches to the DOT with screws provided with the mount, according to the torque specs of your sight – so check the specs from your sight's manual or the manufacturer. Typically, the torque is around 12 in-lbs / 1.4 Nm (Aimpoint Micro), so the force needed is quite minimal. If you overdo it, you might damage something and have a bad time.

Installation Instructions

Here's an installation video. Below are also step-by-step written instructions. For installation, it’s also good to have some sort of aid to keep the rifle in place, such as a bench vise and for AR rifles, a device like the Magpul BEV Block.

Tools Required

Installing Red Dot Sight on DOT Mount

DOT Mount Installation
