Blade-Tech Tek-Lok

One of the most innovative and versatile belt mounting solutions you can have. Perfect for our Terävä Boltaron sheaths but also for other sheaths, holsters, and such. There’s a reason why Tek-Lok has been one of the most widely used and imitated mounting systems. It is tough, and it works.

• Measurements: 51 x 79 x 15 mm (2" x 3.1" x 0.6")
• Weight: 45 g (1.6 oz)
• Hole spacing (c-c): 19.1 mm (3/4")
• Maximum belt width: 57 mm (2.25")
• Color: Black
• Material: Glass-filled Nylon 6
• Max operating temperature: 200°C (392°F)
• Made in the USA

Features and use

Thanks to nine mounting holes, Tek-Lok can accommodate knife sheaths, pistol holsters, and other gear in numerous positions/heights. For example, you can mount the knife sheath blade up, down, diagonally, or sideways.

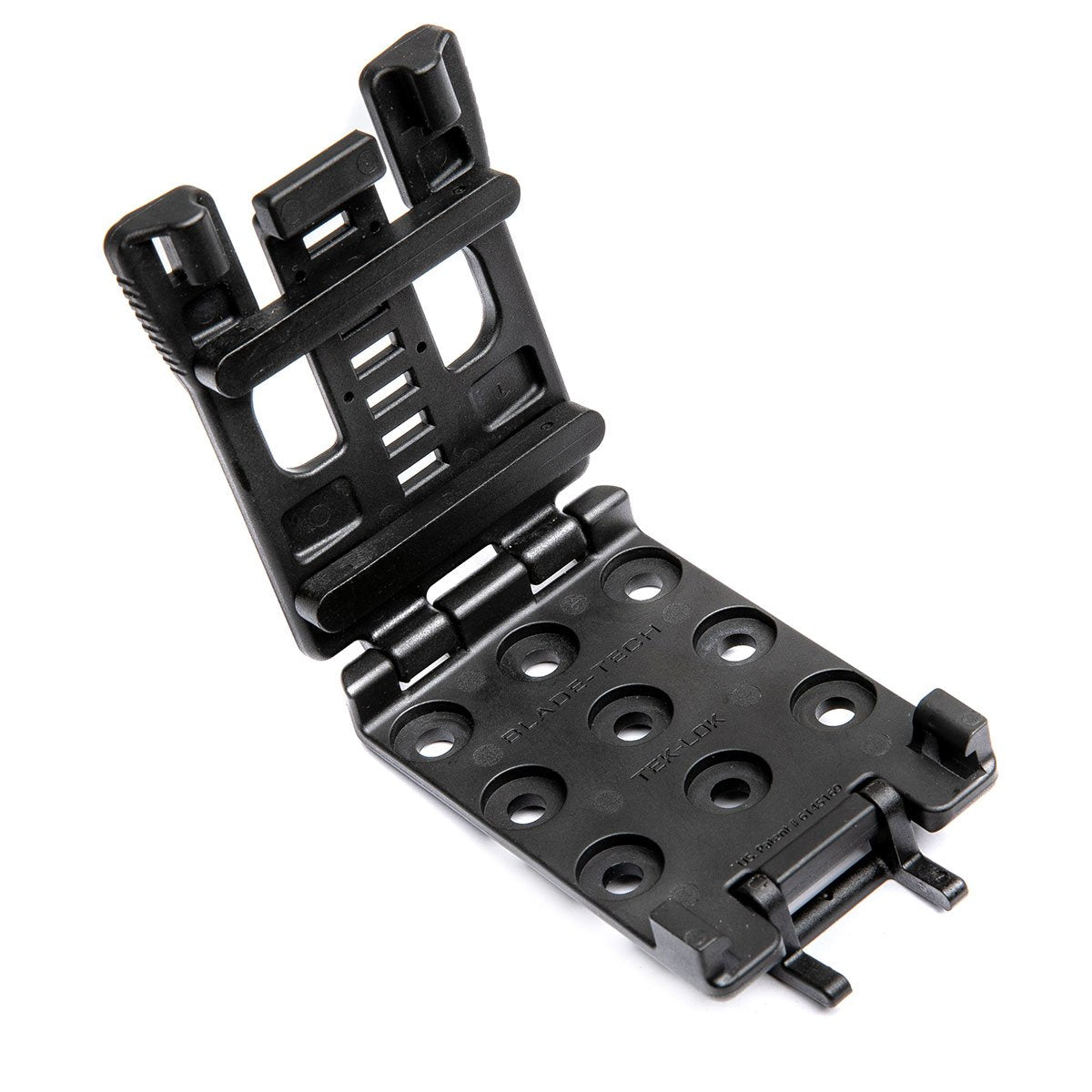

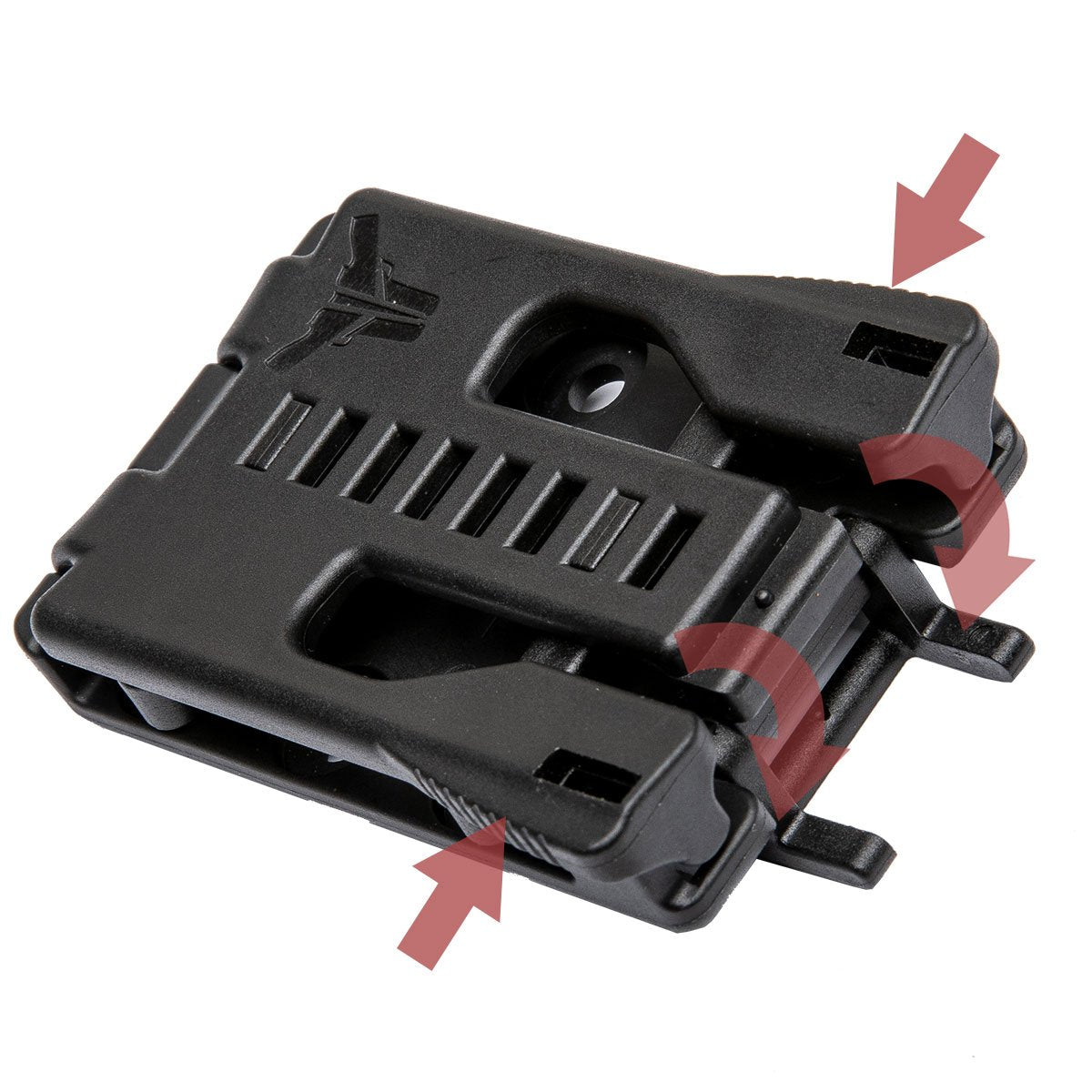

The hinged two-piece Tek-Lok frame is locked into place with two quick-release tabs. To unlock it, turn open the lock lever at the bottom of the Tek-Lok. Then press both release tabs toward each other and pull. Thanks to the double locking system, the Tek-Lok will stay on your belt even if the belt goes flying. Two belt shims inside the Tek-Lok keep the Tek-Lok in place on the belt. These interlocking bars can be set to match the belt width to up to 57 mm (2.25").

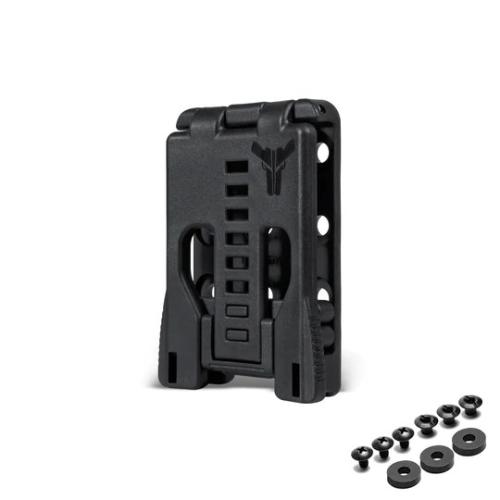

Two hardware options

Holster Hardware:

• 1 x Tek-Lok Attachment
• 2 x Belt Width Shims
• 3 x 1/4" Truss Head Screws
• 3 x 3/16" Posts
• 3 x 0.125" Rubber Spacers.

Knife Sheath Hardware:

• 1 x Tek-Lok Attachment
• 2 x Belt Width Shims
• 2 x 3/8" Oval Head Screws
• 2 x 1/2" Oval Head Screws
• 2 x 1/4" Posts
• 2 x 3/8" Posts
• 2 x 0.125" Rubber Spacers.
