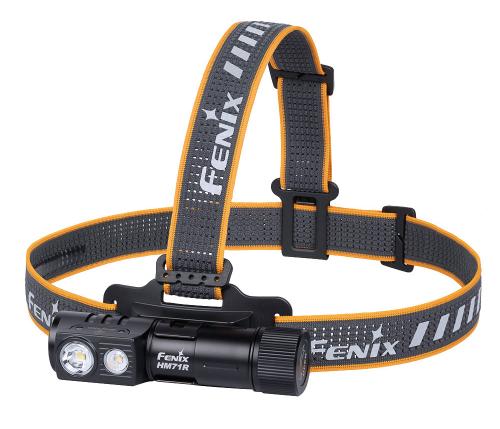

Fenix HM71R headlamp

Do you need white light and a lot of it? Here’s the new Fenix multi-purpose headlamp with a big battery and a 2700 lumen light output! When needed, you can also have a lower light output – there are separate LED lights for power illumination and close proximity work: You can read your papers without scorching your retinas.

Wear the HM71R on your head to point your light where you look. While doing things like industrial maintenance, search and rescue, or guard duties, you might need the full power of the lamp at your disposal. When you have to do close proximity stuff, the 5 lumen floodlight is perfect for reading tasks, and the neutral color-optimized light (CRI=90) ensures better color rendering. For example, you might want to be sure of the colors when doing things with electrical wiring.

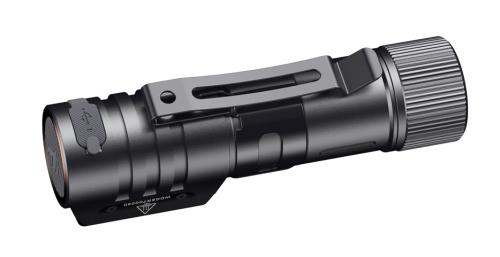

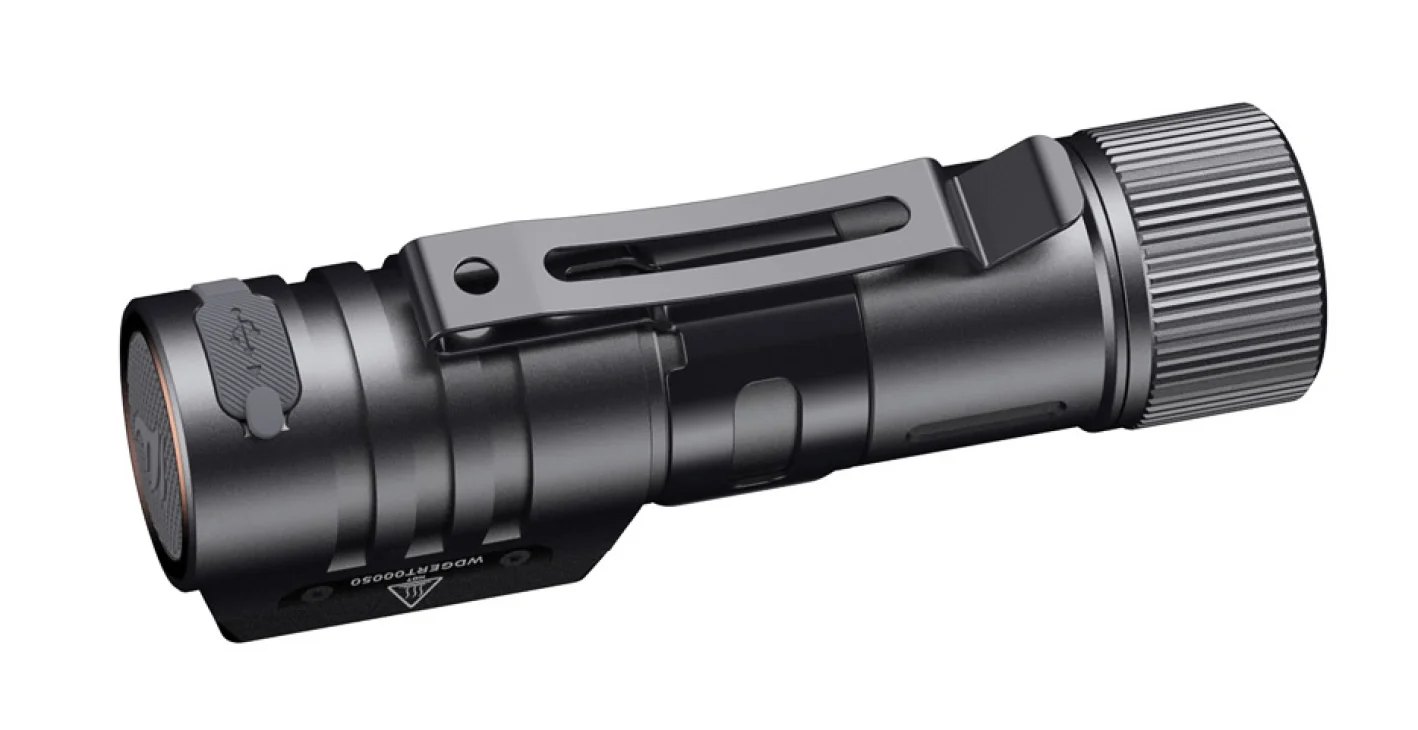

You can also disconnect the lamp from the head mount quick and easy. The chest pocket of your jacket or shirt will do when you want to clip the light onto yourself. And when the headlamp is in your bag or pocket, it won't turn on by itself thanks to an electronic lock system.

This lamp only has white light illumination – if you need a red light for your purposes, check out the Fenix HM61R V2.0 headlamp!

Simple guide to operation

The power button can be easily used even with your gloves on:

• Turning the spotlight on requires a roughly one second deliberate press
• When on, tapping on the power button cycles through various brightness settings within your selected light – a press-and-hold changes from spotlight to floodlight
• When the lamp is off, a double tap will turn the floodlight on
• A three second press on the button engages or disengages the lock when the lamp is off
• This will be signaled by a flashing floodlight
• The floodlight will also flash if the button is pressed while the lock is on
• The lock can’t be engaged while the lamp is on – the lamp can only be locked while in off position
• A roughly one second deliberate press will turn the lamp off regardless of current mode
• While the lamp is off, tap on the power button once, and the battery level will be indicated by a LED light through the power button (see battery level table further below)

A memory circuit recalls the previous spotlight brightness setting excluding the Turbo setting – the light will turn on at the High setting. The double tap will turn the floodlight on at the lowest setting.

Eight output modes

FEATURES

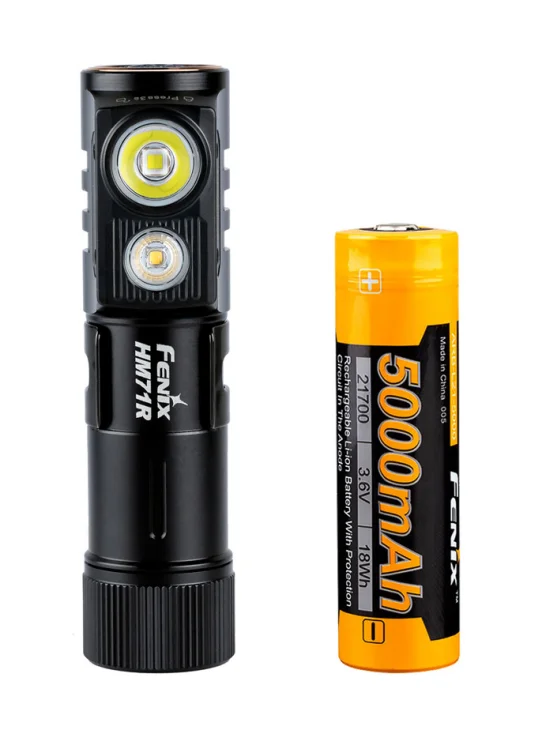

Works with 21700 Li-ion batteries. A Fenix ARB-L21 5000 mAh Li-ion battery is included in the package, and it can be quickly charged with a USB-C charging cable through the charging port in the headlamp. Here are some of the main features:

• Very bright max. 2700 lumen output with maximum of 230 m / 252 yds distance
• Digitally regulated circuit - maintains constant brightness
• Luminous white SST40 white and SST20 LEDs, with a lifespan of 50,000 hours
• Simple operation with large side switch
• USB-C charging for easy and fast operation
• Battery level and charging indication LED:
• More than 80 % green light
• 80-50 % flashing green light
• 50-20 % red light
• Under 20 % flashing red light
• While the lamp is turned off, tap the power button once to see the battery level
• Made of high-quality aluminum and PC (steel optics housing)
• Can be used as a mini flashlight
• Can be used as a helmet light with an ALG-03 v2.0 helmet mount (sold separately)
• Packing includes: headlamp, headband, rechargeable Li-Ion battery, USB-C charging cable, headband buckle (attached to the headband), rubber O-ring, user manual

Product video

TECHNICAL SPECIFICATION

• Output: 2700 lumens (max)
• Runtime: 3 h - 400 h
• LED-type: 1 x SST40 White light LED, 1 x SST20 Neutral White light LED (CRI=90)
• Batteries: 1 x 21700 (included)
• Certificates: ANSI/NEMA FL-1, ROHS, CE, IP68

Other specs:

If you plan on using this a lot in freezing temperatures, you might want to try a battery designed for low temperature work.

Warranty

5 years warranty for the flashlight against factory defects, 1-year warranty for the included battery.
