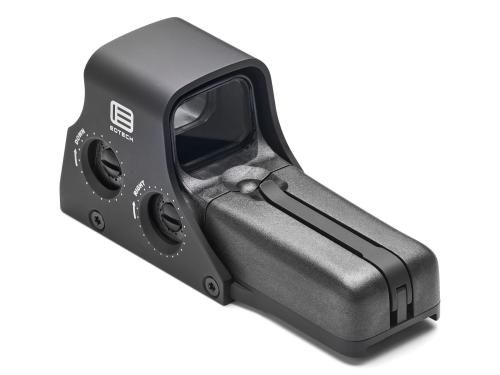

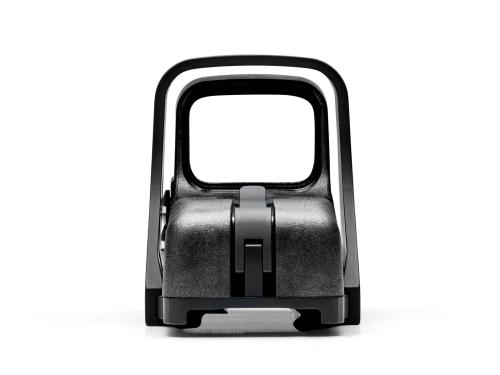

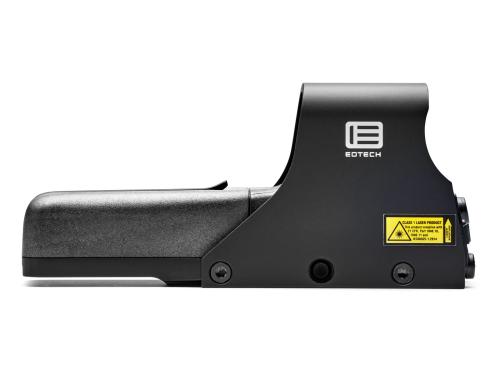

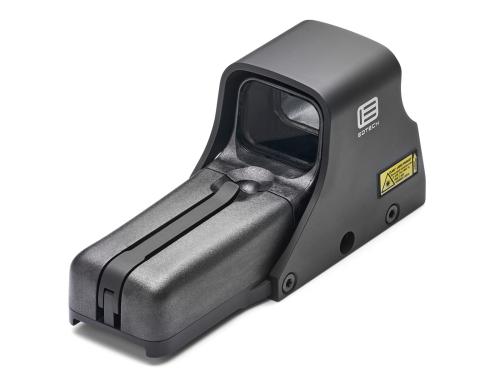

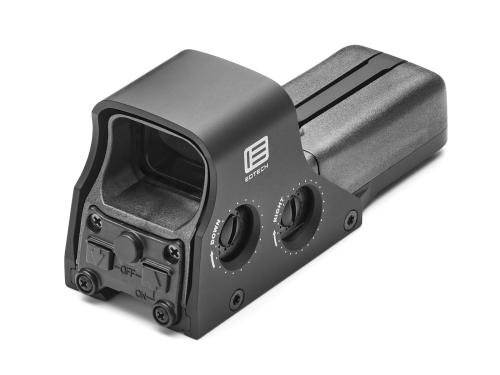

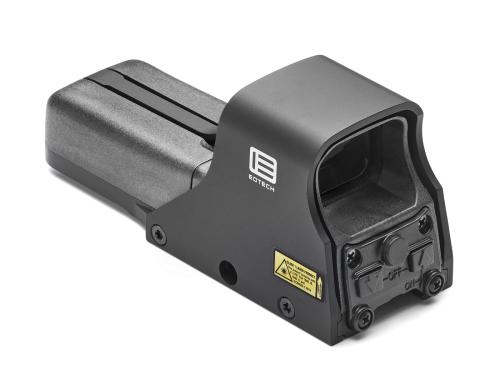

EOTECH HWS 512 A65 Holographic Sight, 68 MOA
The EOTech HWS 512 is perfect for anyone who wants fast target acquisition, reliability, durability, and the logistical ease of using AA batteries. The 512 is among the most popular holographic sights and has been around for a very long time.
- We don't know when this product will be restocked. Request restock notification and we will email you as soon as this product is available.








The EOTech HWS 512 is perfect for anyone who wants fast target acquisition, reliability, durability, and the logistical ease of using AA batteries. The 512 is among the most popular holographic sights and has been around for a very long time.

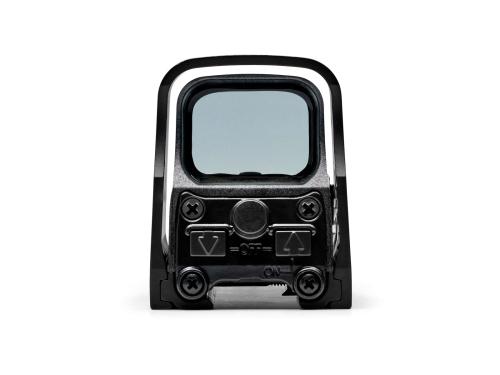

The model 512 has control buttons in the rear and does not have specific NVG settings for the reticle.
The Holographic Advantage
Holographic sights offer a few pros over conventional reflex-type red dot sights. While the battery life is shorter and these are bulkier items you do get a lot in return:
First, the reticle is projected on the target instead of the front lens so you can keep both the reticle and target in focus at the same time.
The dot size relative to the target appears smaller with a magnifier. In reality, the dot is a lot smaller than 1 MOA but the resolution of a human eye isn't accurate enough to tell the difference: We perceive it as 1 MOA. Even with the magnifier, the dot doesn't appear enlarged even though the target is magnified normally.
The hologram remains functional even with damage to the optics. If the front lens of a reflex sight shifts or breaks from a bump, the sight will be totally off zero if you see a dot at all.
Finally, holographic sights have a smaller parallax error compared to reflex sights, though it must be noted that it's minimal with high-quality conventional red dots already.
Is the reticle 68 MOA or 65 MOA?
EOTech used to call this reticle 65 MOA and the figure remains in the model name. EOTech now calls it a 68 MOA reticle but only the name has changed, the reticle is the same as before: Red 68 MOA Ring (65 MOA inside diameter) with a 1-MOA dot in the center.
Specifications
Length | 142 mm | 5.6" |
---|---|---|
Width | 51 mm | 2" |
Height | 64 mm | 2.5" |
Weight | 326 g | 11.5 oz |
Water Resistance | 3 m | 11 ft |
Operating Temperature | -40°C to 60°C | -40°F to 140°F |
Mount Type | Weaver or Picatinny | |
Adjustments | 0.5 MOA / 1 click | |
Brightness | 20 settings | |
Power Source* | 2x 1.5V AA batteries | |
Battery life** | 2,500 h (Lithium), 2,200 h (Alkaline) |
* Supports lithium, alkaline, and rechargeable batteries.
** At room temperature w. brightness setting 12. (These go beyond 11!)
Included in the box:
- HWS 512
- Quick-Start Guide
- Warranty Card
- Allen key for mounting the sight
- 2x AA Alkaline Batteries
- Protective Polymer Case
Made by EOTECH
Holo sights by EOTECH are used by USSOCOM, USMC, US Army, countless police agencies and armed forces, as well as private companies and civilian individuals all over the world. Made in the USA since 1996.
