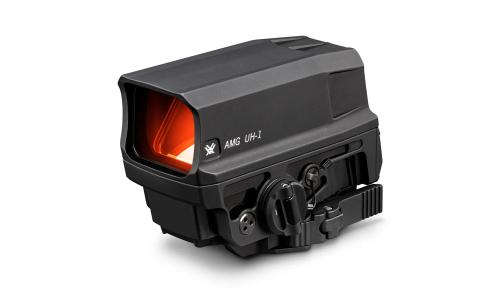

Vortex AMG UH-1 GEN II Holosight

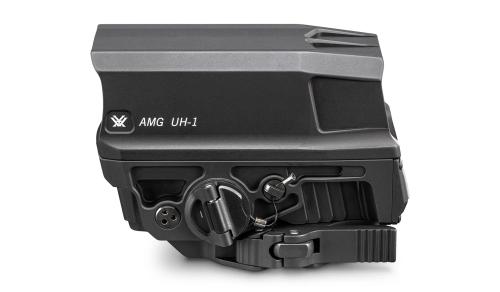

Vortex AMG UH-1 GEN II Holosight. Battery hatch and QD lever on the same side.
Battery hatch and QD lever on the same side.
Vortex AMG UH-1 GEN II Holosight. Sight adjustment screws handily side by side.
Sight adjustment screws handily side by side.

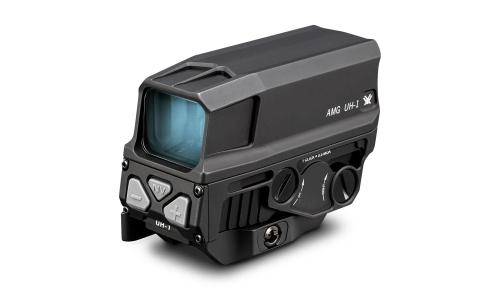

Vortex AMG UH-1 GEN II Holosight. Rear-facing controls for power up and reticle intensity levels.
Rear-facing controls for power up and reticle intensity levels.
Vortex AMG UH-1 GEN II Holosight. Sturdy as hell.
Sturdy as hell.
Vortex AMG UH-1 GEN II Holosight. EBR-CQB reticle. CQB Triangle for close-quarter shots at 10 yards/meters or less.
EBR-CQB reticle. CQB Triangle for close-quarter shots at 10 yards/meters or less.

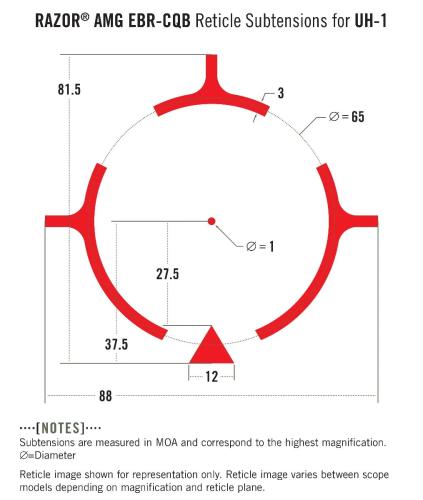

Vortex AMG UH-1 GEN II Holosight. Reticle subtensions.
Reticle subtensions.
Vortex AMG UH-1 GEN II Holosight.
Vortex

Vortex AMG UH-1 GEN II Holosight

Price 779.99 USD 866.99 USD excluding sales tax

If “Close-quarters Battle” is your middle name, you definitely have cool parents. Also you should take a look at this top-of-the-line holographic sight from Vortex.

  • This product is unlikely to be restocked and will be hidden from our website once it's out of stock.
  • Discontinued product.
Add to cart Add to cart Choose variation First select a product Loading Just a moment, thank you!
Add to wish list Add to wish list
Trouble with the metric system? Try our converter:
cm = 0' 0" or 0" and
feet  inches = 0 cm
Vortex AMG UH-1 GEN II Holosight. Battery hatch and QD lever on the same side.
Vortex AMG UH-1 GEN II Holosight. Sight adjustment screws handily side by side.
Vortex AMG UH-1 GEN II Holosight. Rear-facing controls for power up and reticle intensity levels.
Vortex AMG UH-1 GEN II Holosight. Sturdy as hell.
Vortex AMG UH-1 GEN II Holosight. EBR-CQB reticle. CQB Triangle for close-quarter shots at 10 yards/meters or less.
Vortex AMG UH-1 GEN II Holosight. Reticle subtensions.
Vortex AMG UH-1 GEN II Holosight.

If “Close-quarters Battle” is your middle name, you definitely have cool parents. Also you should take a look at this top-of-the-line holographic sight from Vortex.

The AMG UH-1 GEN II Holosight has a rugged and shockproof construction with a view as big as your living room window. It houses the lighting-quick EBR-CQB reticle designed for solving up-close-and-personal situations of the tactical realm.

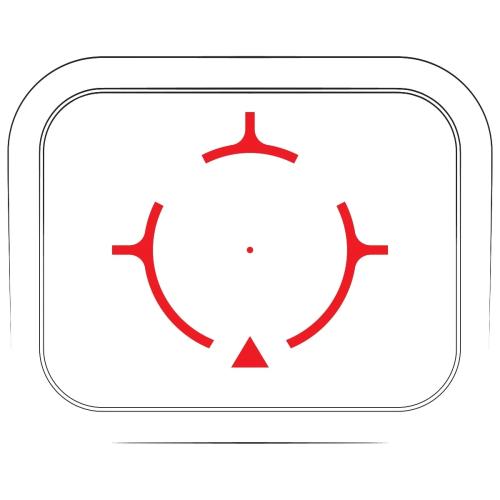

EBR-CQB Reticle

This reticle and its features simply rock.

  • 1 MOA Center Dot for precise aiming
  • 65 MOA Outer Circle for fast target acquisition and ranging, with open sections minimizing target obstruction
  • CQB Triangle for close-quarter shots at 10 yards/meters or less, negating the effect of bore-to-sight level difference at short distances
  • 15 levels of daytime brightness settings
  • 4 levels of night-vision compatible illumination settings behind a dedicated button
  • Easily power up and click through intensity levels via rear-facing controls

The Holographic Advantage

Holographic sights offer a few pros over conventional reflex-type red dot sights. While the battery life is shorter and these are bulkier items you do get a lot in return:

First, the reticle is projected on the target instead of the front lens so you can keep both the reticle and target in focus at the same time.

The hologram remains functional even with damage to the optics. If the front lens of a reflex sight shifts or breaks from a bump, the sight will be totally off zero if you see a dot at all.

Finally, holographic sights have a smaller parallax error compared to reflex sights, though it must be noted that it's minimal with high-quality conventional red dots already.

Specifications

Length99 mm3.9"
Width54 mm2.1"
Height69 mm2.7"
Weight310 g11.0 oz
Water resistanceIPX8
Mount typeWeaver or Picatinny
Adjustments0.5 MOA / 1 click
Brightness15 daylight settings & 4 NV
Power source1 x CR123A battery

Features

  • XR™ Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces
  • Shockproof and rugged construction withstands recoil and impact
  • Waterproof (IPX8) o-ring seals prevent moisture, dust and debris from penetrating the holographic sight for reliable performance in all environments
  • Matte Anodized Finish: Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position
  • Ultra-hard, scratch-resistant ArmorTek coating protects exterior lenses from scratches, oil and dirt
  • Quickly attaches to any Weaver or Picatinny rail with the integrated mount
  • Unlimited Eye Relief: Non-critical eye relief for rapid target acquisition
  • Parallax Free: All red dot and holographic sights will exhibit some small amount of parallax. Matching current industry practice, this small amount would be considered "parallax free" and will make a negligible difference in performance
  • FHQ™ Technology virtually eliminates stray light emissions for stealth-shooter-signature in low light and prevents eyepiece glare common to other holographic sights
  • Made in the U.S.A.

Included in the box

  • AMG UH-1 GEN II Holosight
  • Product Manual
  • Lens Cloth
